FTB60 is a memory management program for the FT-60R/E FM handheld.

You can view a web-based version of the Help file which includes installation instructions, and eHam.net reviews of FTB60

See the Links page for sources of cables.

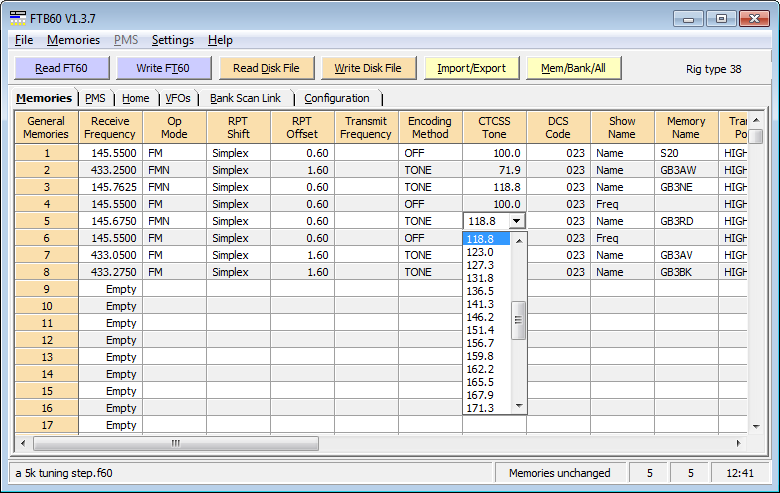

60 memories screen.png (27769 bytes)

  • Backup/restore of the FT-60 clone memory
  • Modify memories
  • Add/delete/move memories
  • Manage memory banks

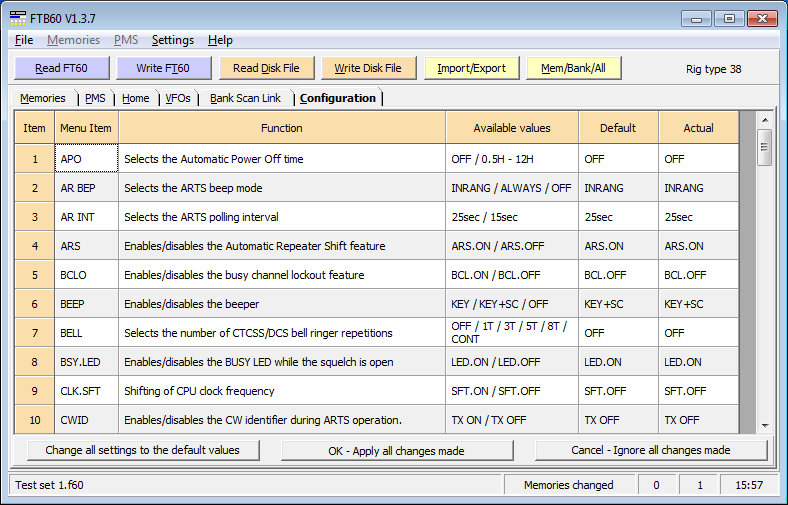

  • Cut/copy/paste memories60 menu items.png (29082 bytes)
  • Sort memories by frequency or name
  • Analyse and report on duplicate frequencies
  • Edit Home memories
  • Edit PMS memories
  • Edit VFOs
  • Change the values in the FT-60's menus

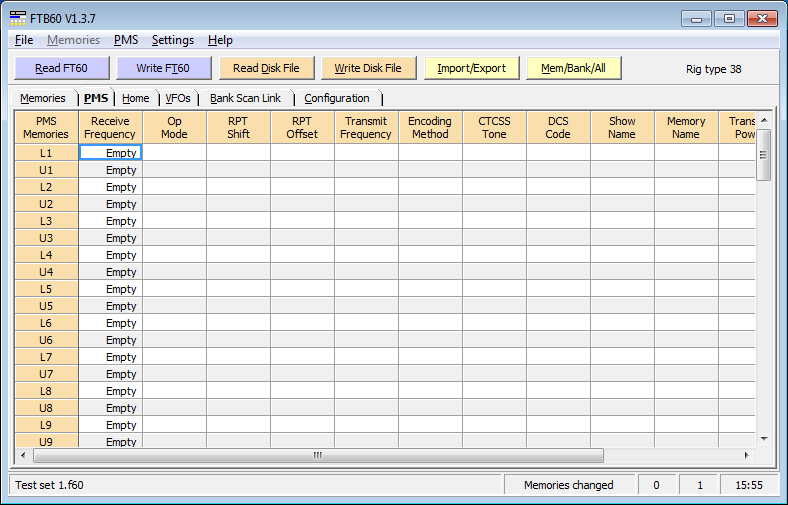

  • Print memories60 PMS memories.png (21705 bytes)

The Import/Export facility enables you to exchange memory information between the following radios by using .CSV format memory definition files. You will also need to use the appropriate FTBxxx software for the target radio.

  • FT-817, FT-847, FT-857, FT-897 (including ND and D models), FT-1802, FT-1807, FT-1900, FT-2800, FT-2900, FT-7800, FT-7900, FT-8800, FT-8900, FT1D, FT2D, FT-60, FT-250, FT-270, FTM-100D, FTM-350, FTM-3200D, VR-5000, VX-3, VX-8, VX-110, VX-150, VX-120, VX-170, VX-177
  • VX-2, VX-5, VX-6, VX-7 - using the Commander range of software by Jim Mitchell, KC8UNJ

Memory definitions can also be imported from TravelPlus for Repeaters using .TPE files, and from ButelSoftware's ARC250.

The program runs on a standard PC that has an available COM port for connection to the transceiver.  The COM port may be a conventional Serial port or one attached to a USB adapter.  It has been developed and tested on Windows XP, Windows Vista, Windows 7, Windows 8 and Windows 10. It will not run on Windows 8 RT version which does not support desktop applications. The minimum screen resolution is 800 x 600 but 1024 x 768 is recommended.
